■ General; Width 2,550 mm, Total Length 13,600 - 10,500 - 9,600, Fifth Wheel Height Loaded 950 - 1450 mm.
■ Reinforced main chassis with an "I" section, welded with an automatic submergible welding machine using 120/12 mm upper and lower flanges and
5 mm hub plate. These chassis are reinforced against torsion by being connected to each other with cross members.
■ It uses 3 axles with a capacity of 12 tons each. It is equipped with brake linings compliant with TSE standards and heavy-duty brake drums.
■ Axle Lifting; Front axle lifting and lowering system located inside the cabin.

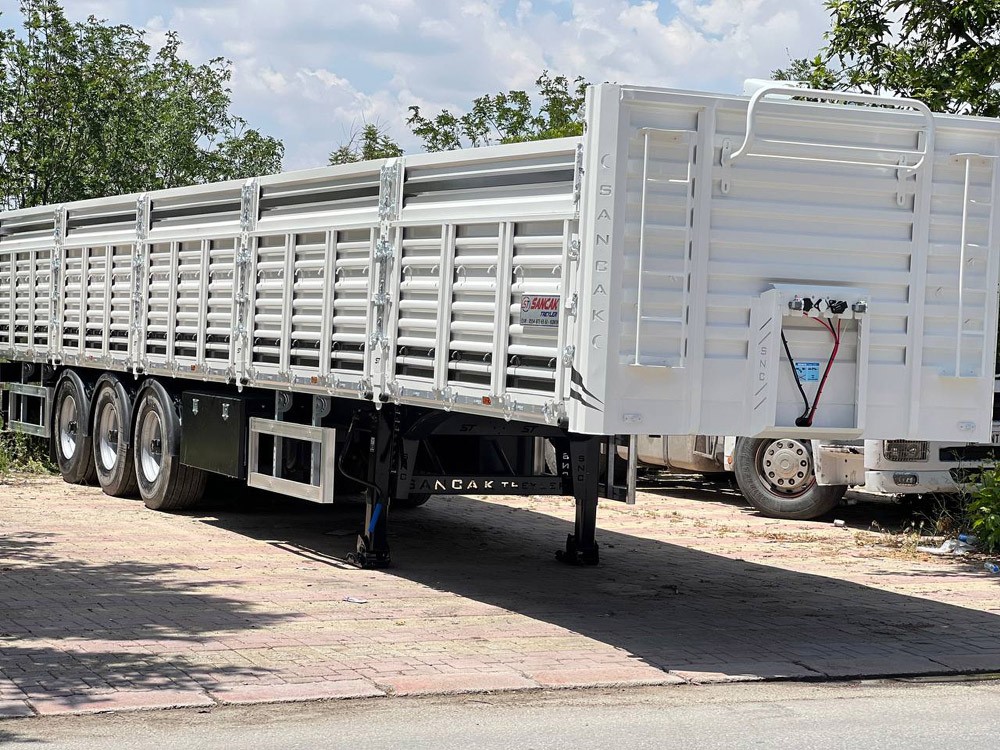

■ Mechanical Jacks; Dual-speed mechanical jacks, each with a carrying capacity of 25 tons.
■ 2” King Pin which is appropriate with SAE DIN norms, and produced from high strength forged steel.
■ Used brake components are in EU standard and designed from WABCO trademark products.
■ Suspension consists of airbags, limiter level valve, ramp arm, ‘Ming coil, parabolic Z springs, shock absorber elements
limiting shaff over movement,
■ Air System; Air for the air suspension, front axle lifting, brake circuit, and EBS circuit is supplied from the air tank. The hoses used in this installation are made of polyamide and are resistant to air pressure.
■ It is suitable forSAE standards and Tüv regulations, Electricity is provided by 7 pin plug from vehicle, There are necessary traffic advisory and stoplights on both sides,

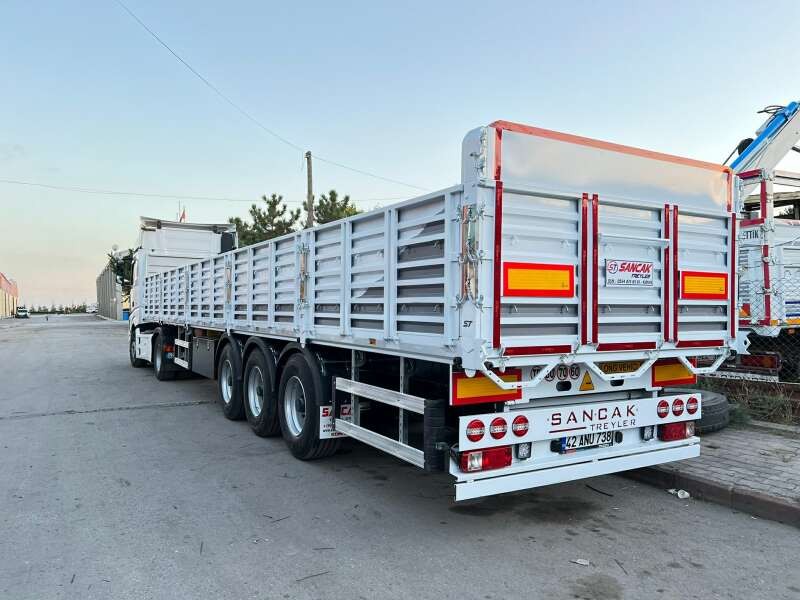

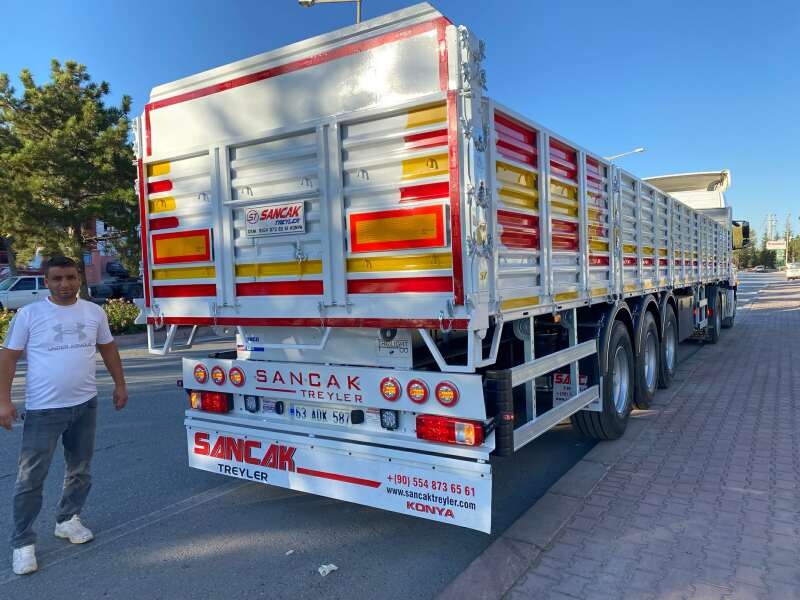

There are back lights, brake lights, license plate lamps, trailer reflectors and orange colored warning lights on the sides
■ Tires and Wheels; 6+1 tubeless tires with a size of 385/65 R 22.5.
■ Trailer’s surface are pained with two fold acrylic paint over epoxy lining after it is cleaned with chemical liquids precisely after
sandblasting work and painting is made according to RAL codes.
